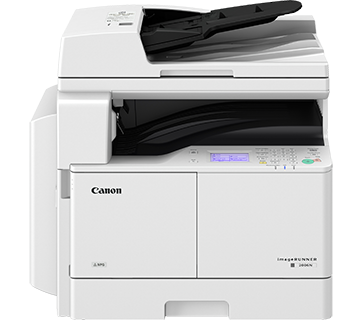

CANON RUNNER 2206N/2006N/2206 series

Stay secure and connected with new A3 series Ideal for small and medium-sized enterprises (SMEs), the imageRUNNER 2206N/2006N/2206 series deliver basic functionalities with enhanced smart capabilities. The imageRUNNER 2206N and 2006N offers security and connectivity functionalities such as secure print, send to email and connectivity to mobile applications. Enjoy better information security alongside greater connectivity and productivity.

A3 Monochrome
Print speed of 20,22 pages per minute

Specification

General Specifications

Type	A3 Monochrome Multifunctional Device (Reader/Printer Desktop)
Copy/Print Speed
A4	iR2206: 22ppm iR2006N: 20ppm iR2206N: 22ppm
A3	iR2206: 11ppm iR2006N: 10ppm iR2206N: 11ppm
Warm-Up Time (Time from device power on, until copy ready)	13s
Recovery from sleep mode	4.3s
First Copy Time (A4)	7.4s
Memory	iR2206: 256 MB iR2006N & iR2206N: 512 MB
Dimensions (W x D x H)	iR2206: 622 x 589 x 502mm iR2006N & iR2206N: 622 x 589 x 607mm (with ADF)
Weight	iR2206: 28.7kg iR2006N & iR2206N: 35.5kg (with ADF)
Installation Space (W × D)	920 x 589 mm (when multi purpose tray is extended)
Power Supply	iR2206: 220 to 240 V AC, 50/60 Hz, 2.4 A iR2006N & iR2206N: 220 to 240 V AC, 50/60 Hz, 2.7 A
Power Consumption
Maximum Power Consumption:	1.5 kWh
When the machine is in the Sleep mode:	2W
Toner Yield (A4, 6% coverage)	10 200 sheets (A4, 6% coverage)
Drum Yield	iR2206: 66 000 sheets iR2006N: 63 700 sheets iR2206N: 66 000 sheets

Print Specifications

Print Resolution	600 x 600 dpi
Page Description Language(s)	iR2206: UFRII LT (Standard) iR2006N & iR2206N: UFRII LT (Standard), PCL6 (Optional)
Print OS Compatibility	Windows 10/8.1/7, Windows Server 2008/2008 R2/2012/2012 R2/ 2016, Mac OS X 10.9.5
Interface
Network	iR2206: N/A iR2006N & iR2206N: Ethernet 100Base-Tx/10Base-T (IEEE 802.3 compliant), WLAN IEEE 802.11b/g/n
Others (Local Print/Scan)	USB2.0 x 1
Network Protocol	iR2206: N/A iR2006N & iR2206N: TCP/IP (IPv4/IPv6), USB Frame type: Ethernet II Print applications: LPD/Raw/IPP/IPPS/WSD/Mopria /Google Cloud Print/AirPrint/Windows10 Mobile Print

Copy Specifications

Copy Resolution	600 x 600 dpi
Multiple Copies/Prints	999 copies
Magnification	25% -400% (1% increment)

Send Specifications

Destination	iR2206: N/A iR2006N & iR2206N: Scan to Email (SMTP), network folders (SMB)
Scan Speed (Simplex, A4, 200dpi)	iR2206: N/A iR2006N & iR2206N: BW: 13 sheets/min CL: 6 sheets/min
Address Book	iR2206: N/A iR2006N & iR2206N: LDAP (5)/Local(104) /One-touch(4)
SEND Resolution	iR2206: N/A iR2006N & iR2206N: BW/CL 300 x 300 dpi
SEND File Format	iR2206: N/A iR2006N & iR2206N: PDF/Compact PDF/JPEG/ TIFF

Scan Specifications

Destination	MF Scan Utility, application compatible with TWAIN/WIA
Supported Protocol	TCP/IP, USB
Scan Speed (Simplex, A4, 300 dpi)	BW: 23 sheets/min CL: 12 sheets/min
Scan Resolution	BW: 600 x 600 dpi CL: 300 x 600 dpi
Scan File Format	TIFF/JPEG/PNG/PDF(Compact, Searchable)/PDF(Divided into Single-Page Files)
Scan OS Compatibility	Windows 10/8.1/7, Windows Server2008/2008 R2/2012/2012 R2/2016, Mac OS X 10.9.5

Security

Authentication	iR2206: N/A iR2006N & iR2206N: Department ID management (Maximum: 100 IDs)
Network	iR2206: N/A iR2006N & iR2206N: Standard: IP/Mac Address Filtering, TLS Encrypted Communication, SNMP V3.0, IEEE 802.1X, IPv6, SMTP Authentication, POP Authentication before SMTP
Document	iR2206: N/A iR2006N & iR2206N: Secure Print (Maximum: 100 IDs)

Paper Handling

Paper Sizes
Cassette 1	A3,B4,A4R,A4,B5,B5R,A5R,India-LGL, FOOLSCAP
Cassette 2	iR2206: N/A iR2006N & iR2206N: A3,B4,A4R,A4,A5,B5,B5R
Multi Purpose Tray	A3,B4,A4R,A4,B5,B5R,A5,A5R,India-LGL, FOOLSCAP, Envelope (COM 10, Monarch, ISO-C5, DL)
Paper Input Capacity (Standard)
Cassette 1	250 sheets (80g/m²)
Multi Purpose Tray	80 sheets (80g/m²)
Paper Input Capacity (Optional)
Cassette 2^*	iR2206: N/A iR2006N & iR2206N: 250 sheets (80g/m²)
Paper Specification
Cassette	Weight: 64 - 90g/m² Type: Plain (64 to 90g/m²), Recycled (65 to 80g/m²), Colour ( 64 to 80g/m²), Pre-punched (75 to 80g/m²)
Multi Purpose Tray	Weight:60-128g/m² Type: Plain (64 to 90g/m²), Heavy 1 (91 to 105g/m²), Heavy 2 (106 to 128g/m²), Recycled (65 to 80g/m²), Colour ( 64 to 80g/m²), Pre-punched (75 to 80g/m²), Bond (75 to 90g/m²), Transparency, Label, Envelope)

Optional Accessories

Duplex Automatic Document Feeder - AY1^*
Type	iR2206: N/A iR2006N & iR2206N: Automatic Document Feeder
Size of Originals	iR2206: N/A iR2006N & iR2206N: A3, B4, A4, A4R, B5, B5R, A5, A5R, FOOLSCAP, India LGL
Paper Weight	iR2206: N/A iR2006N & iR2206N: When scanning continuously: 52 to 105g/m² When scanning a single original: 37 to 128 g/m²
Maximum Number of Originals	iR2206: N/A iR2006N & iR2206N: 50 sheets (A4, 80g/m²)
Scanning Speed (Simplex)
Copying (A4 in BW at 600 dpi)	iR2206: N/A iR2006N: 20ipm iR2206N: 22ipm
Scanning (A4 in BW 300 dpi)	iR2206: N/A iR2006N & iR2206N: 23 ipm
Dimensions (W x D x H)	iR2206: N/A iR2006N & iR2206N: 565 x 520.5 x 126 mm
Weight	iR2206: N/A iR2006N & iR2206N: 7.0kg
Cassette Feeding Module- AD1
Paper Sizes	iR2206: N/A iR2006N & iR2206N: A3,B4,A4R,A4,A5,B5,B5R
Paper Capacity	iR2206: N/A iR2006N & iR2206N: 250 sheets (80g/m²)
Power Source	iR2206: N/A iR2006N & iR2206N: From main unit
Dimensions (W × D × H)	iR2206: N/A iR2006N & iR2206N: 579 x 575 x 116 mm
Weight	iR2206: N/A iR2006N & iR2206N: 5.75kg
Other Optional Accessories and Supplies

Duplex Unit-C1^*, Platen Cover Type X^*, FL Cassette-BB1^*, Heater Kit-M2, Cassette Heater Unit-40, NPG-59 Drum Unit, NPG-59 Black Toner.

* Available for iR2206N/2006N only.

Specifications are subject to change without notice.

•	Microsoft and Windows are registered trademarks of Microsoft Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective companies.
