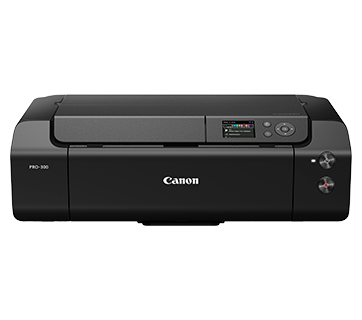

PROGRAF PRO-300

Professional A3+ Photo Printer for Photographers with 10-colour inks system This 10-colour pigment ink printer featured LUCIA PRO ink for unprecedented print quality. Dedicated channels for both Matte and Photo Black inks provide deep blacks on matte, fine art and photo papers. Unique Chroma Optimizer gives photographs a uniform glossiness which regulates surface reflection to prevent bronzing effect for a professional-lab look and feel.

Print
Photo print speed 10.16x15.24cm (4 x 6in) : 1min 45s (borderless)
Wireless, Wired LAN, Wireless Pictbridge, Mopria, AirPrint, Direct Wireless

Specification

Printer

Print Head / Ink
Type	Permanent
Number of Nozzles	Total 7 680 nozzles
Ink Cartridges	PFI-300 (Cyan / Magenta / Yellow / Red / Photo Cyan / Photo Magenta / Grey / Photo Black / Matte Black / Chroma Optimizer)
Maximum Printing Resolution	4 800 (horizontal)^*1 x 2 400 (vertical) dpi
*Print Speed^2**
Photo (27.94x30.48cm (11x12in) image on A3+ with border) (Black & White / Colour, PT-101)	Approx. 4min 15s
Photo (A4 / 3.14x3.93cm (8 x 10in) image on A4 with border) (Colour, PT-101)	Approx. 2min 30s
Photo (1.57x2.36cm (4 x 6in), borderless) (Colour, PT-101)	Approx. 1min 45s
Maximum Printable Paper Length
Top Tray	Top Tray: 322.2 mm (12.7in) Borderless Printing: 329 mm (A3+ / 13in)
Manual Feed	Manual Feed: 323.4 mm (12.7in) Borderless Printing: 329 mm (A3+ / 13in)
Printable Area
Borderless Printing^*3	Top/Bottom/Right/Left margin: each 0 mm
Bordered Printing	Top margin: 3 mm, Bottom margin: 5 mm Left/Right margin: each 3.4 mm (LTR/LGL: Left: 6.4 mm, Right: 6.3 mm) Recommended Top/Bottom/Left/Right margin for Fine Art Paper: each 25 mm
Support Media
Top Tray	Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201, PP-208) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-101) Matte Photo Paper (MP-101) Hagaki Lightweight Photo Paper Japanese Paper Washi Canvas Red Label Superior 80 g/m² Canon Oce Office Colour Paper 80 g/m² Heavyweight Fine Art Paper Inkjet Greeting Card Cardstock
Manual Feed	Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201, PP-208) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-101) Matte Photo Paper (MP-101) Photo Paper Pro Premium Matte (PM-101) Premium Fine Art Smooth (FA-SM1) Premium Fine Art Rough (FA-RG1) Lightweight Photo Paper Heavyweight Photo Paper Extra Heavyweight Fine Art Paper Highest Density Fine Art Paper Japanese Paper Washi Canvas Baryta Paper Inkjet Greeting Card Cardstock
Multi-Purpose Tray	Printable Nail Sticker (NL-101) Printable Disc
Paper Size
Top Tray	A3+, A3, A4, A5, B4, B5, LTR, LGL, Ledger, Hagaki, 17.78x25.4cm (7 x 10in), 30.48x30.48cm (12 x 12in), Square ((12.7x12.7cm (5 x 5in), 8.89x12.7cm (3.5 x 5in)), 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), 25.4x30.48cm (10x12in), 210 x 594 mm [Custom size] width 89 - 329 mm, length 127 - 990.6 mm
Manual Feed	A3+, A3, A4, B4, LTR, LGL, Ledger, 30.48x30.48cm (12 x 12in),20.32x25.4cm (8 x 10in), 25.4x30.48cm (10x12in), 210 x 594 mm [Custom size] width 203.2 - 330.2 mm, length 254 - 990.6 mm
Multi-Purpose Tray	120 x 120 mm
*Paper Size (Borderless)^4**	A3+, A3, A4, LTR, Ledger, 17.78x25.4cm (7 x 10in), 30.48x30.48cm (12 x 12in), Square ((12.7x12.7cm (5 x 5in), 8.89x12.7cm (3.5 x 5in)), 10.16x15.24cm (4 x 6in), 12.7x17.78cm (5 x 7in), 20.32x25.4cm (8 x 10in), 25.4x30.48cm (10x12in), 210 x 594 mm
Paper Handling (Top Tray) (Maximum Number)
Plain Paper Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Matte Photo Paper (MP-101) Photo Paper Plus Glossy II (PP-208) Hagaki Lightweight Photo Paper Japanese Paper Washi Canvas Red Label Superior, 80 g/m² Canon Oce Office Colour Paper, 80 g/m² Heavyweight Fine Art Paper Inkjet Greeting Card Cardstock	LTR/A4/A5/B5 = 100, B4/A3/LGL/LDR = 50 10.16x15.24cm (4 x 6in) = 20; A3/A4 = 10, 25.4x30.48cm (10x12in)/A3+ = 1 10.16x15.24cm (4 x 6in)/Square (12.7x12.7cm (5 x 5in) = 20, A3/A4 = 10, A3+ = 1 A4/A3 = 10, A3+ = 1 10.16x15.24cm (4 x 6in) = 20, A4/A3 = 10, A3+ = 1 10.16x15.24cm (4 x 6in) = 20, A4/A3 = 10, A3+ = 1 A4/A3=10, 10.16x15.24cm (4 x 6in) = 20 20 LTR/A4/A3/A3+/LDR/210 x 594 mm =1 LTR/A4/A3/A3+/LDR/210 x 594 mm =1 LTR/A4/A3/A3+/LDR/210 x 594 mm =1 A4 = 100 A4 = 80 LTR/A4/A3/A3+/LDR/210 x 594 mm =1 LTR/A4/17.78x25.4cm (7 x 10in) = 1 LTR/A4/30.48x30.48cm (12 x 12in) = 1
Paper Handling (Manual Feed) (Maximum Number)
Photo Paper Pro Platinum (PT-101) Photo Paper Plus Glossy II (PP-201) Photo Paper Plus Glossy II (PP-208) Photo Paper Pro Luster (LU-101) Photo Paper Plus Semi-Gloss (SG-201) Matte Photo Paper (MP-101) Photo Paper Pro Premium Matte (PM-101) Premium Fine Art Smooth (FA-SM1) Premium Fine Art Rough (FA-RG1) Lightweight Photo Paper Heavyweight Photo Paper Japanese Paper Washi Canvas Extra Heavyweight Fine Art Paper Highest Density Fine Art Paper Inkjet Greeting Card Cardstock Baryta Paper	A4/A3/A3+ = 1 A4/A3/A3+ = 1 A4/A3=1 A4/A3/A3+ = 1 A4/A3/A3+ = 1 A4/A3/A3+ = 1 A4/A3/A3+ = 1 A4/A3/A3+ = 1 A4/A3/A3+ = 1 LTR/A4/A3/A3+/LDR/210 x 594 mm = 1 LTR/A4/A3/A3+/LDR/210 x 594 mm = 1 LTR/A4/A3/A3+/LDR/210 x 594 mm = 1 LTR/A4/A3/A3+/LDR/210 x 594 mm = 1 LTR/A4/A3/A3+/LDR/210 x 594 mm = 1 LTR/A4/A3/A3+/LDR/2 10 x 594 mm = 1 LTR/A4/17.78x25.4cm (7 x 10in) = 1 LTR/A4/30.48x30.48cm (12 x 12in) = 1 LTR/A4/A3/A3+ = 1
Paper Handling (Multi-purpose Tray) (Maximum Number)	1 (Multi-purpose Tray)
Paper Weight
Top Tray	Plain Paper: 64 - 105 g/m² Canon genuine paper (max.): approx. 380 g/m²
Manual Feed	Canon genuine paper (max.): approx. 380 g/m² Paper Thickness: 0.1 ~ 0.6 mm or less
Ink End Sensor	Dot count
Print Head Alignment	Auto/Manual

Network

Protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
Wired LAN
Network Type	IEEE 802.3 10base-T IEEE 802.3u 100base-TX
Data Rate	10 Mbps/100 Mbps (Auto switching)
Security	IEEE 802.1X (EAP-TLS/EAP-TTLS/PEAP)
Wireless LAN
Network Type	IEEE802.11a/b/g/n
Frequency Band	2.4 GHz/5 GHz
Channel^*5	2.4 GHz: 1 - 13 (US: 1 - 11) 5 GHz: W52/W53/W56/W58^*6
Range	Indoor 5 000 cm (depends on the transmission speed and conditions)
Security	WEP 64/128 bit) WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)
Direct Connection (Wireless LAN)	Available

Printing Solutions

AirPrint	Available
Windows 10 Mobile	Available
Mopria	Available
Canon Print Service (for Android)	Available
PIXMA Cloud Link (from smartphone/tablet)	Available
Easy-Photo Print Editor	Available
Canon PRINT Inkjet/SELPHY (for iOS/for Android)	Available

System Requirement^*7

Windows 10 / 8.1 / 7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

OS X 10.11.6, macOS 10.12～10.15

Chrome OS

General Specifications

Operation Panel
Display	7.5cm(3.0in) Colour LCD Display
Language	33 Languages Selectable: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese
Interface	USB 2.0
PictBridge (Wireless LAN)	Available
*Operating Environment^8**
Temperature	5 - 35°C
Humidity	10 - 90% RH (no dew condensation)
*Recommended Environment^9**
Temperature	15 - 30°C
Humidity	10 - 80% RH (no dew condensation)
Storage Environment
Temperature	0 - 40°C
Humidity	5 - 95% RH (no dew condensation)
Quiet Mode	Available
Acoustic Noise (PC Print)
Plain Paper (A4, Colour)^*10	Approx. 41.1 dB(A)
Photo Paper Pro Platinum (PT-101) (A3+, colour/borderless)	Approx. 39.5 dB(A)
Photo Paper Pro Platinum (PT-101) (1.57x2.36cm (4 x 6in), colour/borderless)	Approx. 39.2 dB(A)
Approx. 39.2 dB(A)	AC 100-240 V, 50/60 Hz
Power Consumption
OFF	Approx. 0.2 W
Standby (all ports connect)	Approx. 2.4 W
Time to enter Standby Mode	Approx. 3 min 34s
Printing USB connection to PC	Approx. 16 W
Dimension (WxDxH)
Factory Configuration	Approx. 639 x 379 x 200 mm
Output / ADF trays extended	Approx. 639 x 837 x 416 mm
Weight	Approx. 14.4 kg

Page Yield

A3+ Colour, Photo Paper, PT-101 (ISO/JIS SCID N2 test file)^*11 (Sheets)	PFI-300 MBK: 270^12 PFI-300 PBK: 33^12 PFI-300 GY: 44^12 PFI-300 C: 82 PFI-300 PC: 116^12 PFI-300 M: 87^12 PFI-300 PM: 73 PFI-300 Y: 87 PFI-300 R: 129^12 PFI-300 CO: 48^*12
A3+ Mono, Photo Paper PT-101 (ISO/JIS SCID N2 test file)^*11 (Sheets)	PFI-300 MBK: 180^12 PFI-300 PBK: 27 PFI-300 GY: 26 PFI-300 C: 123^12 PFI-300 PC: 72^12 PFI-300 M: 189^12 PFI-300 PM: 86^12 PFI-300 Y: 211^12 PFI-300 R: 253^*12 PFI-300 CO: 58
10.16x15.24cm (4 x 6in) Colour, Photo Paper PT-101 (ISO/IEC 29103 test file)^*11 (Sheets)	PFI-300 MBK: 1750^12 PFI-300 PBK: 303 PFI-300 GY: 236 PFI-300 C: 735^12 PFI-300 PC: 625^12 PFI-300 M: 785^12 PFI-300 PM: 530^12 PFI-300 Y: 530^12 PFI-300 R: 920^*12 PFI-300 CO: 272

Ink droplets can be placed with a pitch of 0.000529 cm at minimum (1/4800 in).
Document print speeds are the averages of ESAT (Word, Excel, PDF) in Office Category Test for the default simplex mode, ISO/IEC 24734.
Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc.
Paper types NOT supported for borderless printing are as follows: Envelope. High Resolution Paper, T-Shirt Transfer and Photo Stickers.
Paper types NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers.
1-11 in US, CND, LTN, BRA, TW and HK.
Infrastructure mode and direct mode cannot be used simultaneously in the 5 GHz band.
Direct mode cannot use the 5 GHz band.
Please visit http://asia.canon to confirm OS compatibility and download the latest driver.
The performance of the printer may be reduced under certain temperature and humidity conditions.
For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions.
Acoustic Noise is measured based on ISO7779 standard with default setting.
When printing ISO/JIS-SCID N2 test file at 4.33x4.51cm (11 x 14in) size continuously on A3+, with the default settings of testing paper using Windows 10 printer driver and Photoshop CC.
Estimated supplemental yield.

Disclaimer

To keep printer's performance, Canon printer performs cleaning automatically according to its condition. When the printer performs cleaning, a small amount of ink is consumed. In this case, all colours of ink may be consumed.
[Cleaning function]
The cleaning function helps the printer to suck air bubbles or ink itself from the nozzle and thus prevents print quality degradation or nozzle clogging.
The repairing parts for printers will be available five years after production is discontinued. Depending on your model, we may ask you to replace it with a new model, or one with almost the same performance as a maintenance service. In this case, you may not be able to use the supplies or accessories for the model or the compatible OS will be changed.
To obtain good printing quality, use up ink within six months after opening.
Depending on your terminal, such as a computer or a smartphone, or the operating system of your terminal, such as your computer or smartphone, the estimated ink level information or message displayed on the screen of your terminal may be different from the information or message displayed on the operation panel of the printer. Also, a part of the estimated ink level message displayed on the operation panel of the printer may not be displayed and/or may be displayed at a different point in time. Canon recommends that you use the information and message displayed on the operation panel of the printer as your reference. Note, however, that such information and message are displayed items serve only as a guideline information.
Depending on the paper or the print settings, colour ink may be consumed even when you print a document or perform printing in black and white. When any one of the colours of ink has run out, you need to replace the ink cartridge.
You need to install ink cartridges of all colours whether you perform black and white printing or colour printing. If any one of the ink cartridges is not installed, an error occurs and you cannot perform printing.
When you use the Canon printer for the first time after you install the bundled ink tanks, the printer consumes a small amount of ink to enable printing by filling the nozzles of the Print Head with ink. For this reason, the number of sheets that can be printed with the first ink cartridge is fewer than the succeeding ink cartridges.
The printing costs described in the brochures or websites are based on the consumption data from not the first ink cartridge but the succeeding ink cartridge.
The warranty term for details, contact a Canon-authorized sales representative in the country or region you live in.
Ink cartridges sold are generally meant for use with printers sold in the same region. The ink cartridges may bear unique labels or configurations and may not be compatible for use with printers sold in another region. To ensure optimal performance of your printer, please check with your local Canon office or authorised Canon reseller before relocating your printer from the location of purchase.
Regarding a solution to a problem caused by using non-genuine ink cartridges (including ones supplemented with non-genuine ink by making a hole in the cartridge or so), a fee will be charged even within the warranty term. Keep this in your mind when you use non-genuine ink.
If you use non-genuine ink cartridges (including ones supplemented with non-genuine ink by making a hole in the cartridge or so), they may have a negative effect on the performance of the printer or the printing quality may be reduced. In addition, though it is a rare case and does not present a safety hazard, it is reported that a print head will become heated or smoke will be emitted from it due to an ingredient not contained in genuine Canon ink.
(Note that this does not apply to all non-genuine ink.)
