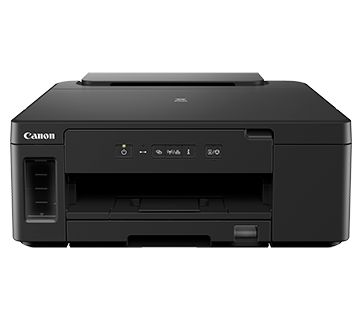

PIXMA GM2070
Refillable Ink Tank Wireless Printer for High Volume Monochrome Printing Design for high volume monochrome printing at low running cost. This printer also has the option for colour document printing.
- ISO standard print speed (A4): 13.0ipm black
- Hi-speed USB 2.0, Wireless, Wired LAN, Wireless/Wired LAN Pictbridge, Direct Wireless
- Recommended print volume: 150 to 1 500 pages
Specification
Print Head / Ink |
|
Type |
Permanent (Replaceable) |
Number of Nozzles |
Black: 640 nozzles (Optional Colour: 1 152 nozzles) |
Ink Bottles / Cartridges |
GI-70 (Pigment Black) |
Printing Resolution |
600 (horizontal)*1 x 1 200 (vertical) dpi |
Print Speed*2 Based on ISO/IEC 24734 |
|
Document (ESAT/Simplex) |
13.0ipm (black) / 6.8ipm (colour) |
Document (ESAT/Duplex) |
4.8ipm (black) / 2.8ipm (colour) |
Document (FPOT Ready / Simplex) |
9s (black) / 14s (colour) |
Printable Width |
203.2mm (20.32 cm) |
Printable Area |
|
Borderless Printing*3 |
- |
Bordered Printing |
#10 Envelope/DL Envelope: |
Bordered Auto 2-Sided Printing |
Top / Bottom margin: 5 mm, |
Support Media |
|
Rear Tray |
Plain Paper (64-105g/m²) |
Cassette |
Plain Paper (64-105g/m²) |
Paper Size |
|
Rear Tray |
A4, A5, B5, LTR, LGL, Envelopes (DL, COM10), Card Size (91x55 mm) |
Cassette |
A4, A5, B5, LTR |
Paper Handling (Number) |
|
Rear Tray |
Plain Paper (A4, 64g/m²) = 100 |
Cassette |
Plain Paper (A4, 64-105g/m²) = 250 |
Support Media for Auto 2-sided printing |
|
Type |
Plain Paper |
Size |
A4, A5, B5, LTR |
Paper Weight |
|
Rear Tray |
Plain Paper: 64-105g/m² |
Cassette |
Plain Paper: 64-105g/m² |
Ink End Sensor |
Electrode type and dot count type combined |
Print Head Alignment |
Auto/Manual |
Network
Protocol |
TCP/IP, SNMP |
Wired LAN |
|
Network Type |
IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T) |
Data Rate |
10M/100Mbps (Auto switchable) |
Wireless |
|
Network Type |
IEEE802.11n / IEEE802.11g / IEEE802.11b |
Frequency Band |
2.4GHz |
Channel*4 |
1-13 |
Range |
Indoor 50m (Depends on the transmission speed and conditions) |
Security |
WEP64/128bit |
Direct Connection (Wireless LAN) |
Available |
Printing Solutions
Canon Print Service |
Available |
PIXMA Cloud Link |
Available |
Canon PRINT Inkjet/SELPHY |
Available |
System Requirements*5
|
Windows 10 / 8.1 / 7 SP1 |
General Specifications
Language |
32 Selectable Languages: Japanese / English / German / French / Italian / Spanish / Dutch / Portuguese / Norwegian / Swedish / Danish / Finnish / Russian / Czech / Hungarian / Polish / Slovene / Turkish / Greek / Simplified Chinese / Traditional Chinese / Korean / Indonesian / Slovakian / Estonian / Latvian / Lithuanian / Ukrainian / Romanian / Bulgarian / Thai / Croatian / Vietnamese |
Interface |
Hi-Speed USB 2.0 |
PictBridge (Wireless / Wired LAN) |
Available |
Operating Environment*6 |
|
Temperature |
5 - 35°C |
Humidity |
10 - 90% RH (no dew condensation) |
Recommended Environment*7 |
|
Temperature |
15 - 30°C |
Humidity |
10 - 80% RH (no dew condensation) |
Storage Environment |
|
Temperature |
0 - 40°C |
Humidity |
5 - 95% RH (no dew condensation) |
Quiet Mode |
Available |
Acoustic Noise (PC Print) |
|
Plain Paper (A4, B/W)*8 |
Approx. 52.0dB(A) |
Power |
AC 100-240V, 50/60Hz |
Power Consumption |
|
OFF |
Approx. 0.3 W |
Standby (scanning lamp is off) |
Approx. 0.8W |
Standby (all ports connected, scanning lamp is off) |
Approx. 1.6W |
Time to enter Standby mode |
Approx. 1min 29sec. |
Printing*9 |
Approx. 13W |
Typical Electricity Consumption (TEC)*10 |
0.1 kWh |
Environment |
|
Regulation |
RoHS (EU, China), WEEE (EU) |
Duty Cycle |
Up to 15,000 pages/month |
Dimension (WxDxH) |
|
Factory Configuration |
Approx. 403 x 369 x 166 mm |
Output/ADF trays extended |
Approx. 403 x 695 x 356 mm |
Weight |
Approx. 6.0kg |
Page Yield
Plain Paper (A4 pages) |
Standard: |
- Ink droplets can be placed with a pitch of 0.000529167cm at minimum.
- Document print speeds are the average of ESAT (Word, Excel, PDF) in Office Category Test for the default simplex mode, ISO/IEC 24734.
Photo print speed is based on the default setting using ISO/JIS-SCID N2 on Photo Paper Plus Glossy II and does not take into account data processing time on host computer.
Print speed may vary depending on system configuration, interface, software, document complexity, print mode, page coverage, type of paper used etc. - Paper Type NOT supported for borderless printing are as follows: Envelope, High Resolution Paper, T-Shirt Transfer, Photo Stickers.
- 1-11 in US, CND, LTN, BRA, TW and HK.
- (Please visit https://asia.canon to check OS compatibility and to download the latest driver updates).
- The performance of the printer may be reduced under certain temperature and humidity conditions.
- For the temperature and humidity conditions of papers such as photo paper, refer to the paper's packaging or the supplied instructions.
- Acoustic Noise is measured based on ISO7779 standard with default setting.
- Print: When printing ISO/JIS-SCID N2 on A4 size plain paper using default settings.
- Typical Electricity Consumption (TEC) value: TEC value was calculated assuming the unit will be constantly switched among operational mode, sleep mode, and power-off mode for 5 days, and that it will be either in sleep or power-off mode for the remaining 2 days within the same week. The TEC value of this product is calculated by Canon on their own accord using.
TEC measurement procedure regulated in International ENERGY STAR Program. - Declared yield value in accordance with ISO/IEC 24711 (for A4 size) using ISO/IEC 24712 test file, and ISO/IEC 29102 (for 10.16 x 15.24cm size) using ISO/IEX 29103 test file. Values obtained by continuous printing.
- This printer is a monochrome printer.
Print colour document with optional colour cartridge.
Once the installed colour cartridge is depleted, please replace with a new colour cartridge or a contact protector has to be installed.
