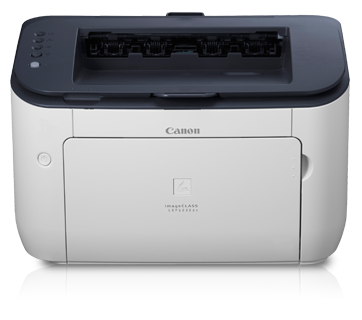

CANON imageCLASS LBP6230dn
Compact Design, Increased Productivity Compact and user friendly, the LBP6230dn will let you achieve high-quality monochrome prints at up to 1 200 x 1 200dpi for brilliant text and image documents.
- Print Speed (A4): 25 pages per minute
- Recommended Monthly Print Volume: 500 - 1 500 pages
- Auto duplex printing
- Wired LAN
Specification
| Printing Method | Monochrome Laser Beam Printing | ||
| Print Speed | Simplex: | A4: 25 pages per minute | |
| Duplex: | A4: 7.7spm (sheets per minute) | ||
| Print Resolution | 600 x 600dpi | ||
| Print Quality with Image Refinement Quality | 1 200 x 1 200dpi (equivalent) 2 400 (equivalent) x 600dpi |
||
| Warm-Up Time (From Power On) |
10s | ||
| First Printout Time (FPOT) | 6s | ||
| Recovery Time (From Sleep Mode) |
0.5s | ||
| Print Language | UFR II LT | ||
| Paper Handling | |||
| Paper Input (Standard) | 250 sheets (based on 80g/m2) | ||
| Multi-Purpose Tray | 1 sheet (based on 80g/m2) | ||
| Paper Output | 100 sheets (face down) (based on 80g/m2) |
||
| Paper Sizes | Standard: | A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL Custom (Width: 76.2 - 216mm x Length 187 - 356mm) |
|
| Multi-Purpose Tray: | A4, B5, A5, Legal*1, Letter, Executive, 16K, Envelope COM10, Envelope Monarch, Envelope C5, Envelope DL/ Index card Custom (Width: 76.2 - 216mm x Length 127 - 356mm) |
||
| Paper Weight | Standard: | 60 to 163g/m2 | |
| Multi-Purpose Tray: | 60 to 163g/m2 | ||
| Paper Type | Plain paper, Heavy Paper, Transparency, Label, Envelope, Index card | ||
| Duplex Printing | A4, Letter, Legal*1(60 - 105g/m2) | ||
| Connectivity and Software | |||
| USB Interface | USB 2.0 High Speed | ||
| Network Interface | 10 Base T / 100 Base Tx | ||
| Network Protocol | Print: |
LPD, RAW, WSD-Print | |
| Management: | SNMPv1, SNMPv3, SLP TCP/IP Application Services: WINS (IPv4), DHCP, BOOTP, RARP, DHCPv6 (IPv6), Auto IP, mDNS, DNS, DDNS |
||
| Network Security | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x | ||
| Mobile Print | Canon PRINT Business | ||
| Compatible Operating Systems*2 | Windows 8.1 (32 / 64-bit), Windows 7 (32 / 64-bit), Windows Server 2012 (32 / 64-bit), Windows Server 2012 R2 (64-bit), Windows Server 2008 (32 / 64-bit), Windows Server 2008 R2 (64-bit), Mac OS 10.7.x - 10.9*3, Linux*3, Citrix (FR2 and later) | ||
| General Specification | |||
| Operation Panel | 4 LED indicators, 3 operation keys | ||
| Device Memory | 64MB | ||
| Dimensions (W x D x H) | 379 x 293 x 243mm | ||
| Weight | 7.0kg | ||
| Noise Level*4 | During Operation: | Sound Power Level: | 6.77dB |
| Sound Pressure Level: | 52dB | ||
| During Standby: | Sound Power Level: | Inaudible*5 | |
| Sound Pressure Level: | Inaudible*5 | ||
| Maximum Power Consumption | 1 100W | ||
| Average Power Consumption | During Operation: | 420W | |
| During Standby: | 1.4W | ||
| During Sleep: | 0.9W | ||
| TEC (Typical Electricity Consumption) |
0.7kWh/week | ||
| Operating Environment | Temperature: | 10 ~ 30°C | |
| Humidity: | 20 to 80% RH (no condensation) | ||
| Power Requirement | 220 - 240V (±10%), 50 / 60Hz (±2Hz) | ||
| Toner Cartridge*6 | Cartridge 326: | 2 100 pages (Bundled Cartridge: 900 pages) |
|
| Monthly Duty Cycle*7 | 8 000 pages | ||
| Recommended Monthly Print Volume | 500 - 1 500 pages | ||
| *1 | Legal refers to paper measuring 215.9 x 355.6mm (8.5 x 35.56cm). |
| *2 | Check www.canon-asia.com for the latest printer driver. |
| *3 | The latest drivers for Mac OS and Linux can be downloaded here when available. |
| *4 | Tested in accordance to ISO 7779 and declared per ISO 9296. |
| *5 | "Inaudible" means each sound pressure level at bystander's position is less than ISO 7779 absolute criteria for background noise level. |
| *6 | Toner cartridge yield is in accordance with ISO / IEC 19752. |
| *7 | Monthly Duty Cycle value provides a means of comparison for product robustness in relation to other Canon laser devices, and does not refer to actual maximum image output per month. |
| Specifications are subject to change without notice. | |
